Progress of Works
Eight lots. One has left the screen.
Tomato is modular on purpose: each slice gets its own PCB, local EEPROM decode, and a dedicated page in this catalog. Pick a lot for the full story—outline, role in the datapath, and where it stands today. Lot 07 is the one in copper.
Catalog · select a lot
From transistor predecessor to dual-LUT copper.
Green is done · gold is now · grey is still on the screen
- 01ALUSet aside
- 02ShiftIn design
- 03MemoryIn design
- 04RegisterIn design
- 05PCIn design
- 06BusIn design
- 07ALUPopulating
- 08DisplayIn design
270 mm transistor-hybrid predecessor. 3,488 MOSFETs. Complete on paper—not the copper that went to fab.
02 Shift In design32-bit barrel shifter and multiply loop. ~forty 74ACT157 muxes. Priority encoder skips zero chunks.
03 Memory In designDual-port RAM, byte-lane decode, 60×80 tile framebuffer. The bus to the outside world.
04 Register In design256 GPR · 3-read-1-write. Instruction register sheet. Eight banks on a 32-bit word.
05 PC In designProgram counter, stack pointer, interrupt vectors. Keyboard tables and printer I/O hooks.
06 Bus In designTri-state write-back highway. 74ACT541 + 74ACT138 → 9 ns mux. Unblocks every other slice.

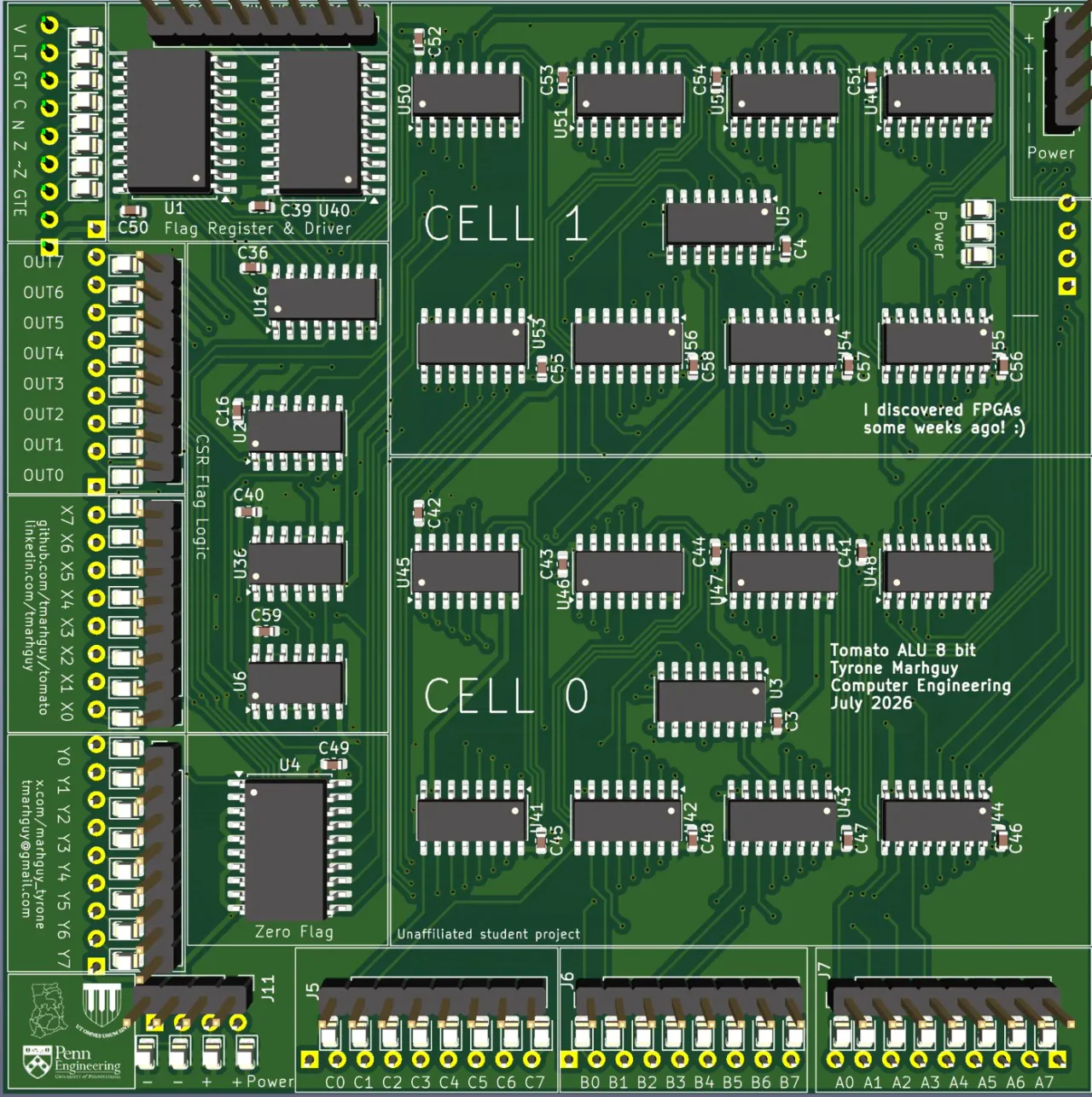

07 ALU PopulatingDual-LUT 8-bit slice. Muxes and adders down on board one. Seven lamps. The copper is next to the sim.
08 Display In designThe rest of the lamp wall and VGA timing. 07 already carries its own LED bring-up panel.
