After months of schematic churn, opcode tables, and the occasional 40-bit detour, the dual-LUT ALU is no longer a KiCad fantasy. Copper is being etched. Chips are in a warehouse in Minnesota. I am genuinely excited.

Fabrication

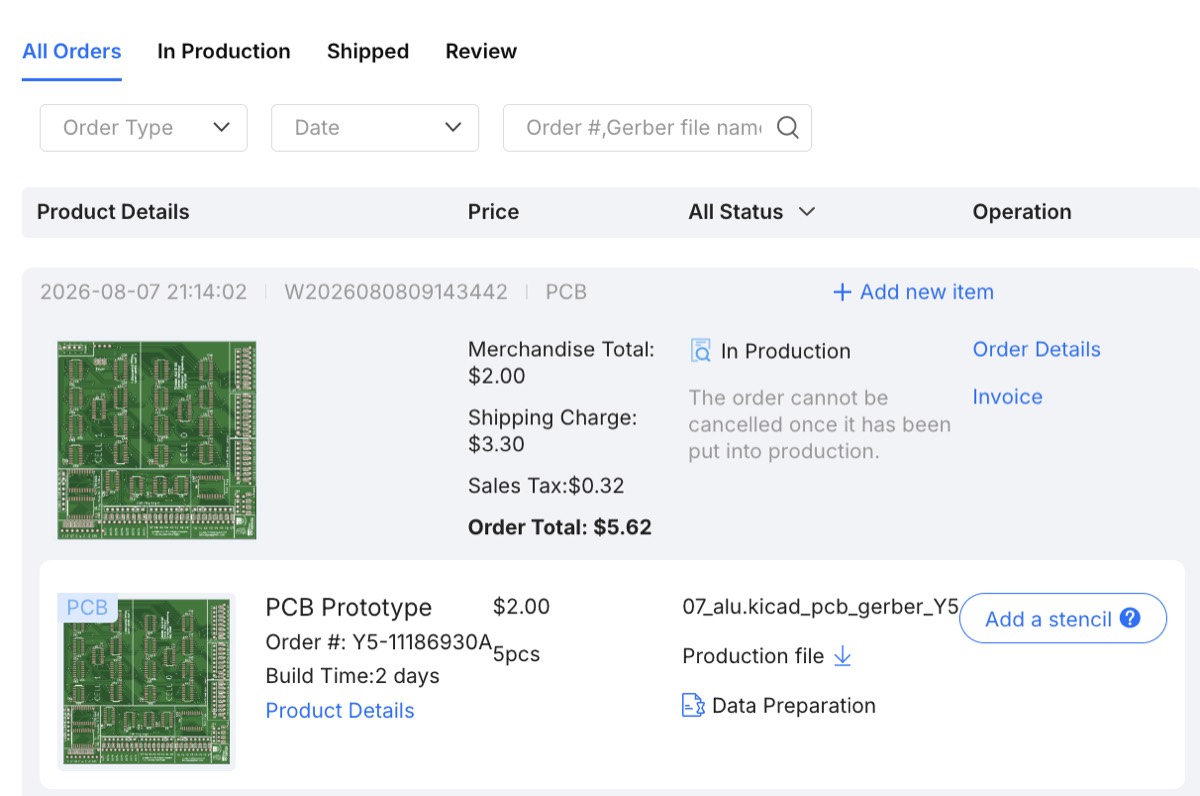

The existential “one more routing pass” voice is quiet. It was not buying much anymore. Board 07_alu, an 8-bit dual-LUT slice, ordered for under six dollars — cheap enough to spin again if the fab errs. ETA about two weeks to Philadelphia. That was the point of keeping the board small.

Fig. 2 — JLCPCBCopper incoming

DigiKey — order 100884560

Same night, different commitment: thirty-four 74ACT151 muxes do not lie. The cart is sized for two boards — a 16-bit datapath from day one. One board proves the slice; two boards is Tomato width on the bench. The marginal cost of the second slice was too good to skip.

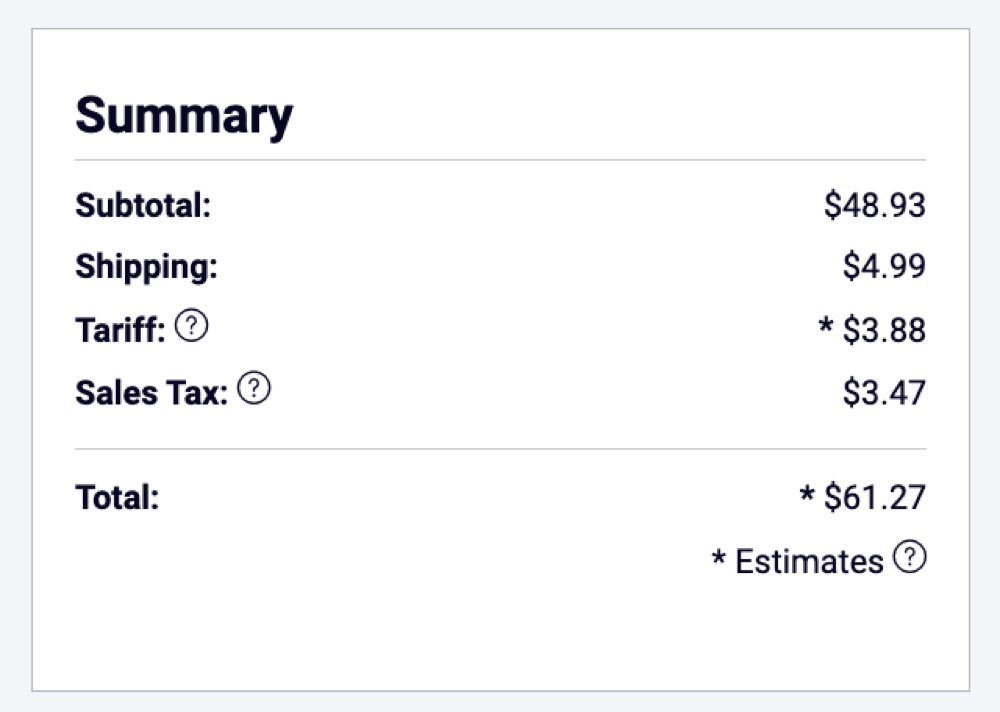

Subtotal $48.93. Total with ship, tariff, and tax about $61. All lines immediate. Samsung 100nF caps were backordered; Yageo substituted. HCT688 over HC688 for cleaner 5V ACT margins.

Fig. 3 — DigiKeyTen lines · two boards of silicon

What happens next

Wait. Grab the remaining SIP-4 networks and headers — DigiKey would not sell those without a two-thousand-piece reel. Assemble board one: 131 placements, 63 LEDs, the debug wall. Bring up 8-bit — opcode walk, carry chain, flag latch. Assemble board two, cascade to 16-bit, and finally see the dual-LUT datapath breathe.

If something is wrong, 130 red LEDs do not lie. This is the best part — where the schematic meets flux and patience. Tomato is ordered. Now we build.
