Area and available hardware imply that designs which offer more for less are favourable — unlike conventional parasitic and wiring-budget metrics. The ALU moved from adder(mux(a,b,c), masked invert(b), carry-in) into adder(mux(a,b,c), mux(a,b,c), h(carry-in)).

The earlier g(b) unit took two opcodes and produced four states, all useful. Forced 0 lets the adder do f + 0 — logic mode. The cost was two chips per 4-bit cell: a quad XOR as global inverter and a quad NAND. Why not replace the naïve masked invert with a single 74151?

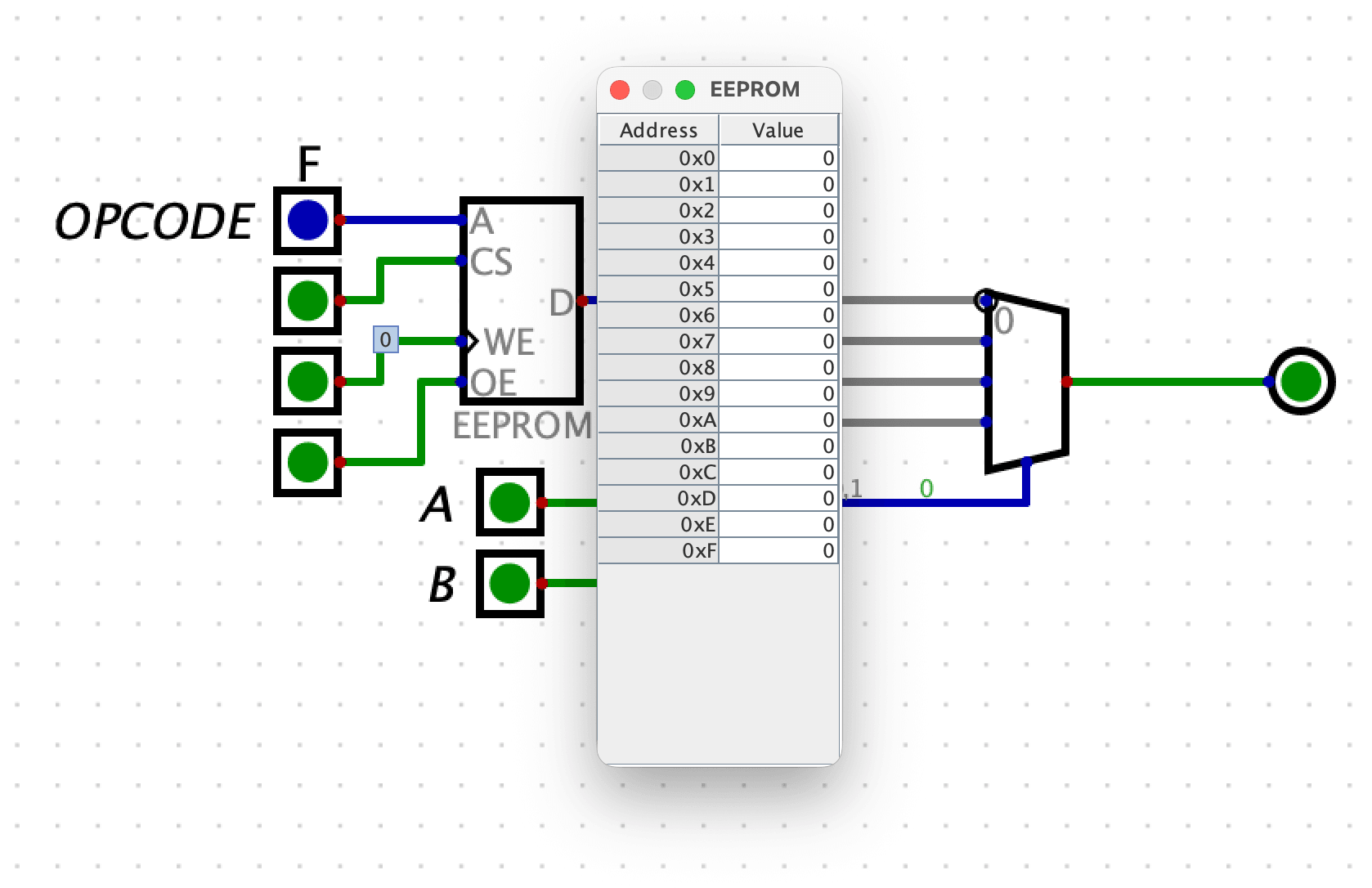

An 8:1 mux wants an 8-bit truth table. A dual 4:1 looked like a perfect substitute with no catch — except 74153 shares select lines, so it is not a true dual. Four chips for LUT2, and the second mux inside the package sits dark. If four chips are needed for LUT2, build a second LUT3. Two extra chips versus invert. Identical chip count versus LUT2. Astronomical operational space.

I need to acknowledge redundancies in the maximum sample space. and(a,b,c) + xnor(a,b,c) is the same sum the other way around. Future progress will clarify the unique operational space and eliminate Boolean noise.
